1465A Recharge Installation Duraslot Detail

1465A Recharge Installation Duraslot Detail.pdf

1465A Recharge Installation Duraslot Detail

This document shows the 1465A Recharge Installation Duraslot Detail. A detail of the Duraslot with descriptors, table and notes provided.

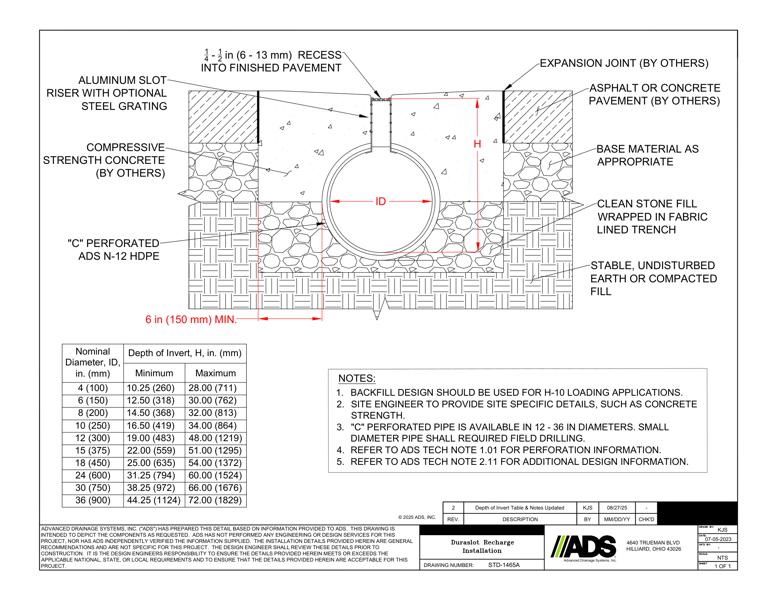

The Duraslot detail shows the 1/4ā€-1/2ā€ recess into finished pavement, expansion joint, aluminum slot riser with optional steel grating, compressive strength concrete, ā€œCā€ perforated ADS N12 HDPE, asphalt or concrete pavement, base material as appropriate, clean stone fill wrapped in fabric lined trench and stable, undisturbed earth or compacted fill.

A table shows the nominal diameter ID for 4 thru 36 and depth of invert height in minimum and maximum inches.

Notes state that backfill design should be used for HS-10 loading applications. The engineer provides site specific details such as concrete strength.
