15 x 12 HP Tee Nyloplast Detail
Filename:
15 x 12 HP Tee Nyloplast Detail.dwg
![15 x 12 HP Tee Nyloplast Detail](https://assets.adspipe.com/m/1e911a2519c0bfcd/webimage-15-x-12-HP-Tee-Nyloplast-Detail.jpg)

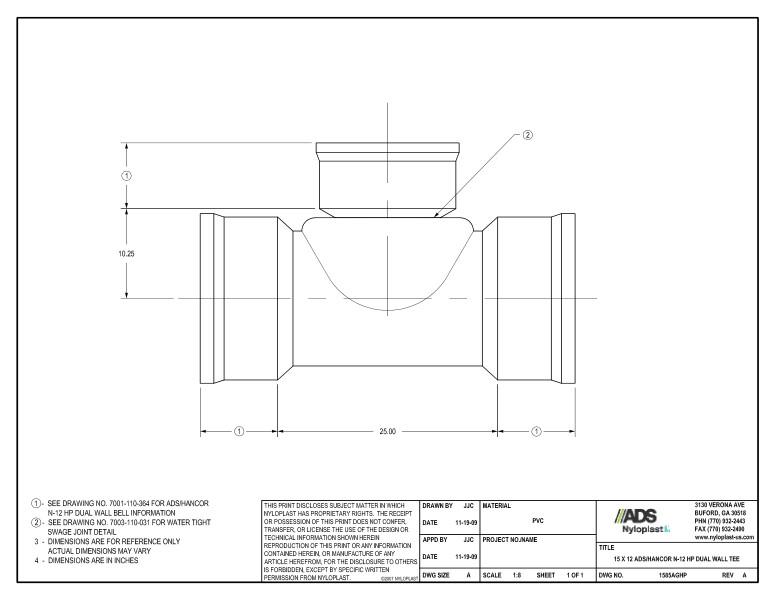

This document is the 15 x 12 HP Tee Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references ADS/Hancor N-12 HP Dual Wall Bell for more information. Note 2 refers to drawing for water tight SWAGE joint detail. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
