Filename: 2' x 2' Steel Bar Locking Grate Assembly Nyloplast Detail.pdf

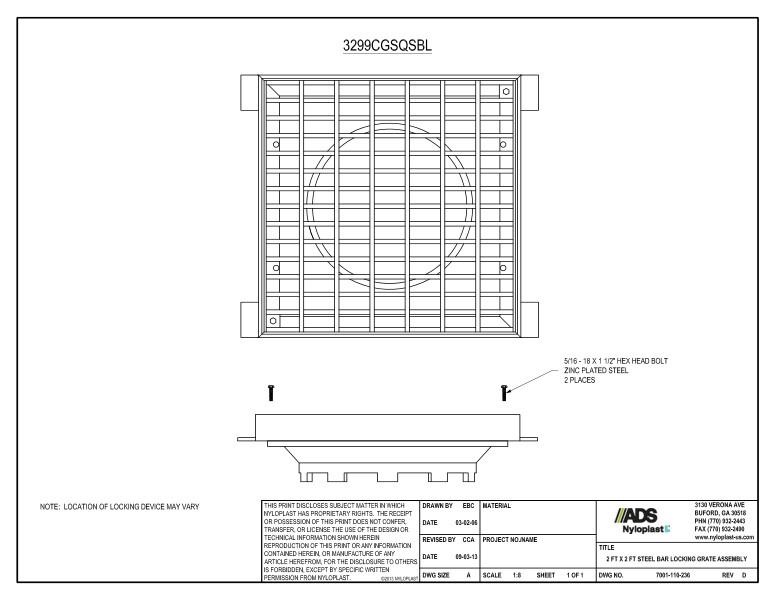

This document is the 2’ x 2’ Steel Bar Locking Grate Assembly Nyloplast Detail. 2 nyloplast illustrations with dimensions shown.
1 detail shows the locking grate from top. Side view defines hex head bolt in zinc plated steel in 2 places.
A note states that the location of locking device may vary.
