30"-60" Fabricated 22.5 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings)
Filename:
30"-60" Fabricated 22.5 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings).pdf
![30"-60" Fabricated 22.5 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings)](https://assets.adspipe.com/m/4636c727e9c0ce16/webimage-30-60-Fabricated-22-5-Degree-Bends-HDPE-Dual-Wall-Fabricated-Bends-Fittings.jpg)
This document is the 30”-60” Fabricated 22.5 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings). Plain end & watertight diagrams and table provided.

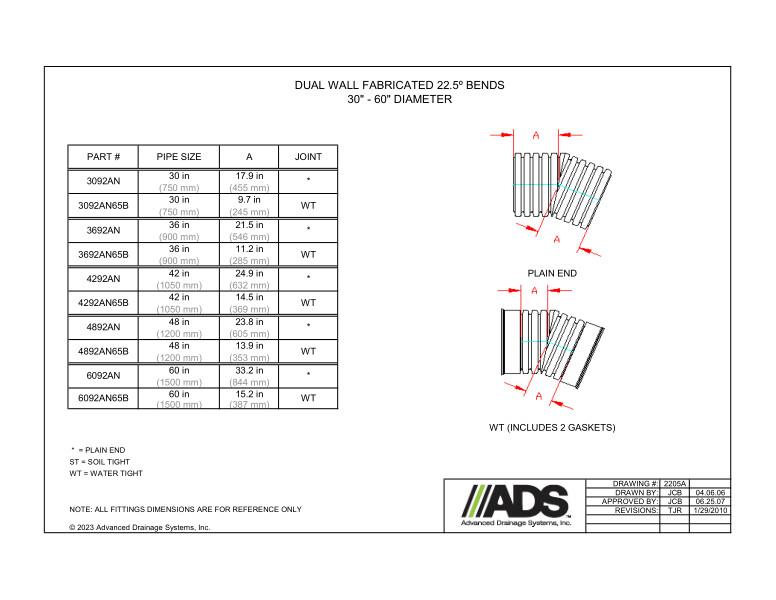

The illustrations of the plain end Bend shows the angle and A dimensions. The WT (includes 2 gaskets) Bend shows the angle and A dimensions.
A table with part number, pipe size and A/Joint dimensions is provided.
All fittings dimensions are for reference only.
