12" Adapter - N-12 Dual Wall Bell x SCH 40 Bell Nyloplast Detail

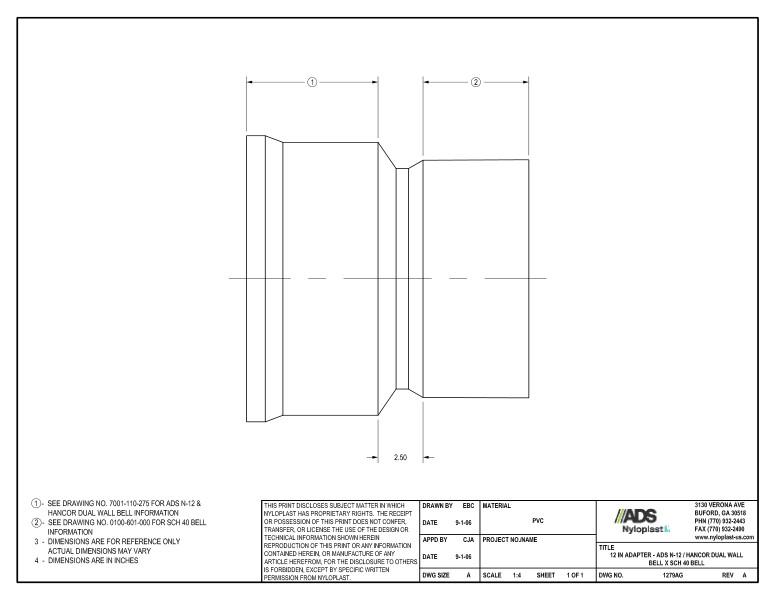

This document is the 12” Adapter - N-12 Dual Wall Bell x SCH 40 Bell Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references Hancor Dual Wall Bell for more information. A note on dimension 2 references a drawing for SCH 40 bell information. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.

An illustration showing the dimensions is provided.
