805 Gravel Sump Detail

Filename:
805 Gravel Sump Detail.dwg

Download Document (dwg)
805 Gravel Sump Detail

This document is the 805 Gravel Sump Detail. It shows the sump detail with descriptions and notes.

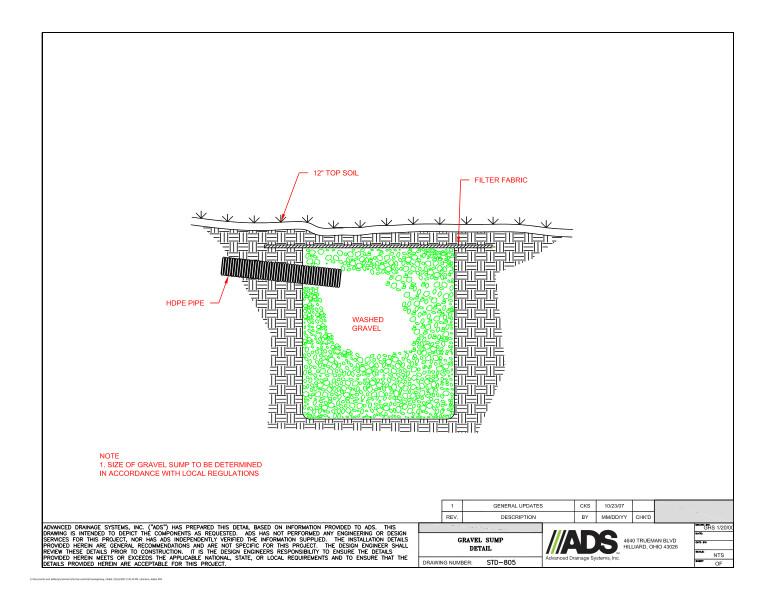

This side view detail shows 12” top soil, filter fabric, washed gravel and the HDPE pipe.

Notes state that the size of gravel sump to be determined with local regulations.

805 Gravel Sump Detail
