42" x 15" - 42" x 36" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings)
Filename:
42" x 15" - 42" x 36" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings).pdf
This document is the 42" x 15" - 42" x 36" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings). Diagrams with table provided.

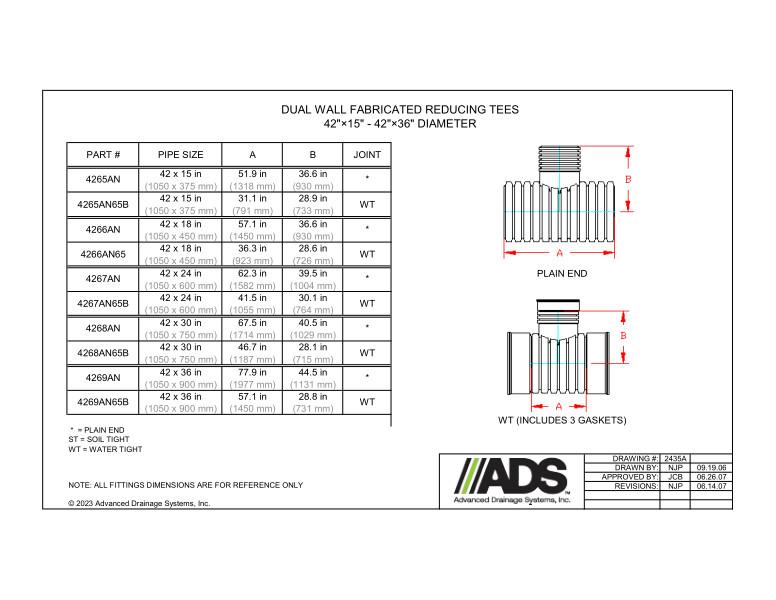

The dual wall Fabricated Reducing Tees 42" x 15" - 42" x 36" diameter is shown in a Plain End diagram with A/B dimensions and a WT (includes 3 gaskets) Tee that shows A/B dimensions.
A table with the information for part number, pipe size and A/B/Joint sizes is provided.
All fittings dimensions are for reference only.
