Nyloplast Inlet Filter Catch-It Detail

Filename:
Nyloplast Inlet Filter Catch-It Detail.dwg

Download Document (dwg)
Nyloplast Inlet Filter Catch-It Detail

This document is the Nyloplast Inlet Filter Catch-It Detail. A Nyloplast Flexstorm Catch-It detail with descriptions and dimensions shown.

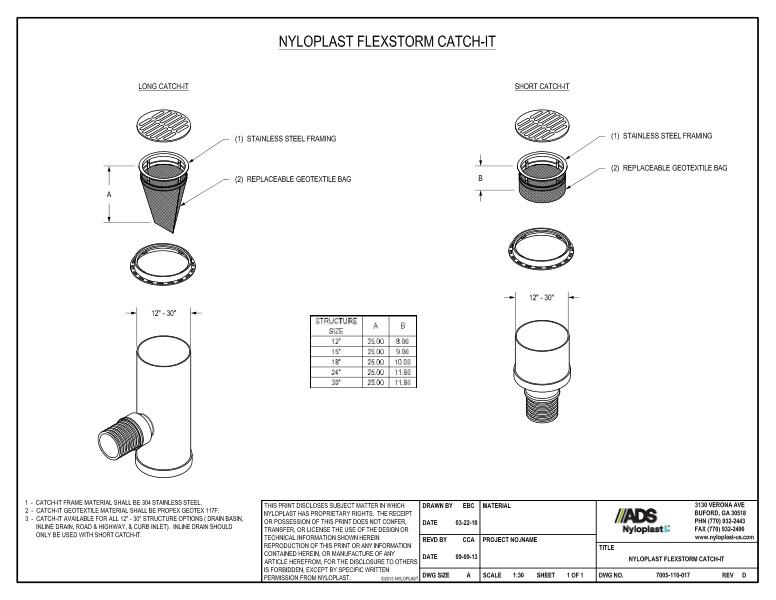

An illustration shows the long catch-it with stainless steel framing and replaceable geotextile bag. The short catch-it shows the stainless steel framing and replaceable geotextile bag.

Note 1 states that catch-it frame material shall be 304 stainless steel. Note 2 explains that the catch-it outer geotextile material shall be propex geotex 117F. Lastly, catch-it available for all 12” – 30” drain basin, road & highway and curb inlet structure options. Inline drain should only be used with short catch-it.

Nyloplast Inlet Filter Catch-It Detail
