Drain Basin & Inline Drain Non Traffic Installation Nyloplast Detail
Filename:
Drain Basin & Inline Drain Non Traffic Installation Nyloplast Detail.pdf
![Drain Basin & Inline Drain Non Traffic Installation Nyloplast Detail](https://assets.adspipe.com/m/770987d9eeda102d/webimage-Drain-Basin-Inline-Drain-Non-Traffic-Installation-Nyloplast-Detail.jpg)

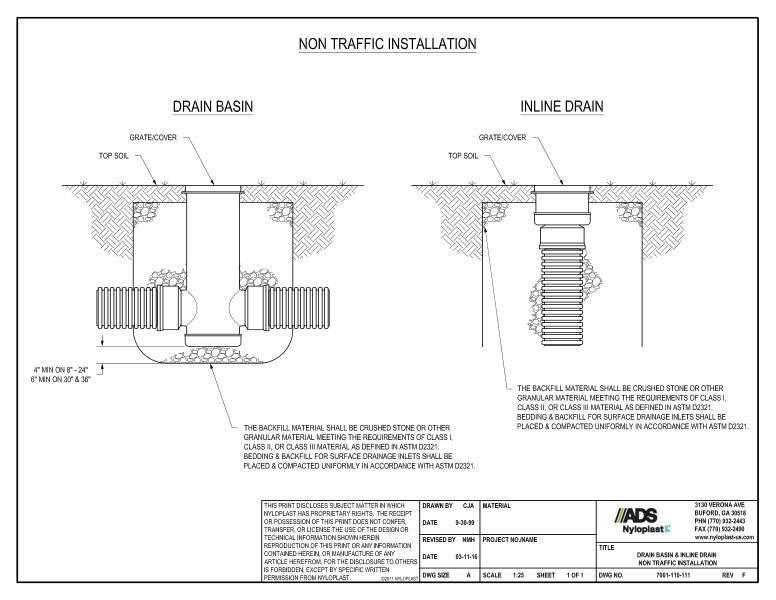

This document is the Drain Basin & Inline Drain Non Traffic Installation Nyloplast Detail. It shows the inline drain and drain basin with descriptions.
The drain basin illustration shows the grate/cover, minimums, top soil and backfill material made from crushed stone or other granular material. The inline drain illustrations shows the same without minimums.
