18" Standard Locking Grate Assembly Nyloplast Detail

Filename:
18" Standard Locking Grate Assembly Nyloplast Detail.dwg

18" Standard Locking Grate Assembly Nyloplast Detail

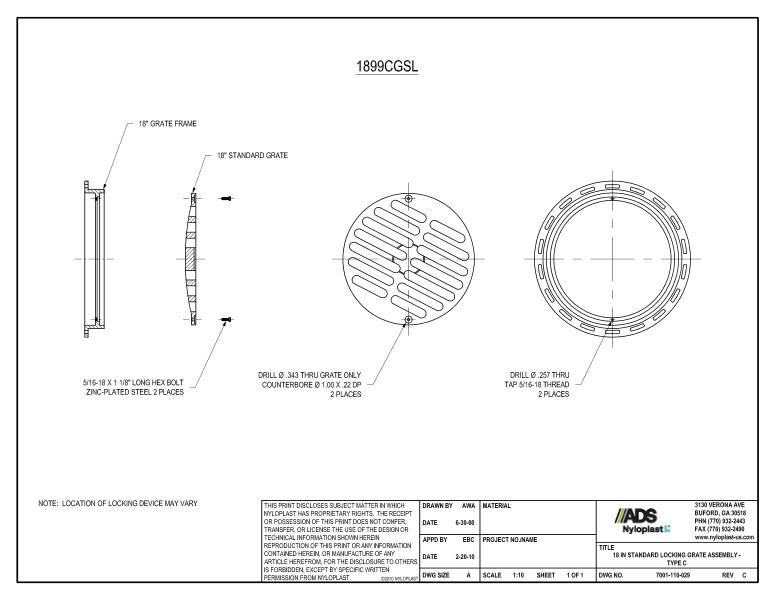

This document is the 18" Standard Locking Grate Assembly Nyloplast Detail. It shows illustrations with descriptions.

The side view illustrations show the 18” grate frame & 18” Standard cover with 5/16-18 x 1 1/8” long hex bolt zinc-plated steel in 2 places. The top down view shows the grate with drill thru position and the frame drill thru thread position.

A note states that the location of locking device may vary.
