2' x 2' Road & Highway 2 Piece Grate Assembly Nyloplast Detail

Filename:
2' x 2' Road & Highway 2 Piece Grate Assembly Nyloplast Detail.pdf

2' x 2' Road & Highway 2 Piece Grate Assembly Nyloplast Detail

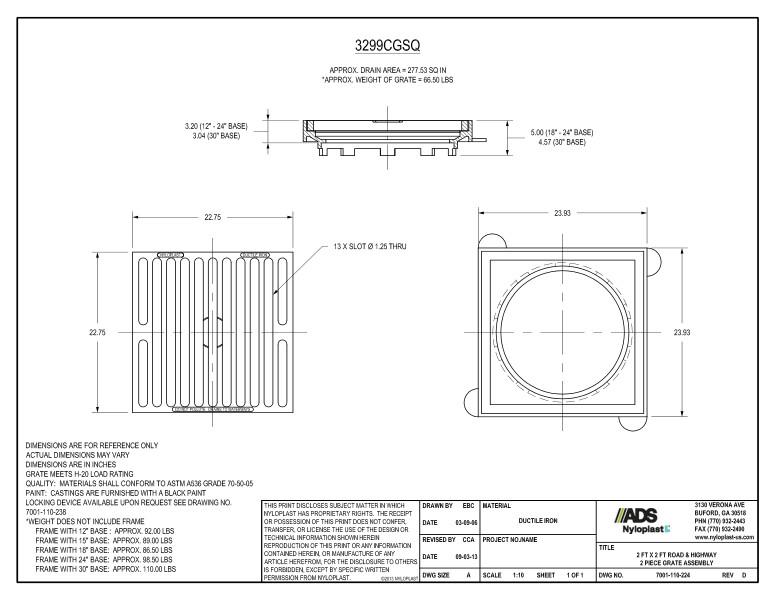

This document is the 2' x 2' Road & Highway 2 Piece Grate Assembly Nyloplast Detail. Grate and frame illustrations with descriptions shown.

The details show the grate and frame. Featured is the side angle of the base with dimensions. Top views of the grate and frame show the dimensions.

Notes explain that dimensions are for reference only and in inches, grate meets H-20 load rating, materials shall conform to ASTM A536 grade 70-50-05. The castings are furnished with a black paint. Locking device available upon request.
