929 Arc 36LP Chamber Detail

Filename:
929 Arc 36LP Chamber Detail.pdf

Download Document (pdf) View in Browser
929 Arc 36LP Chamber Detail

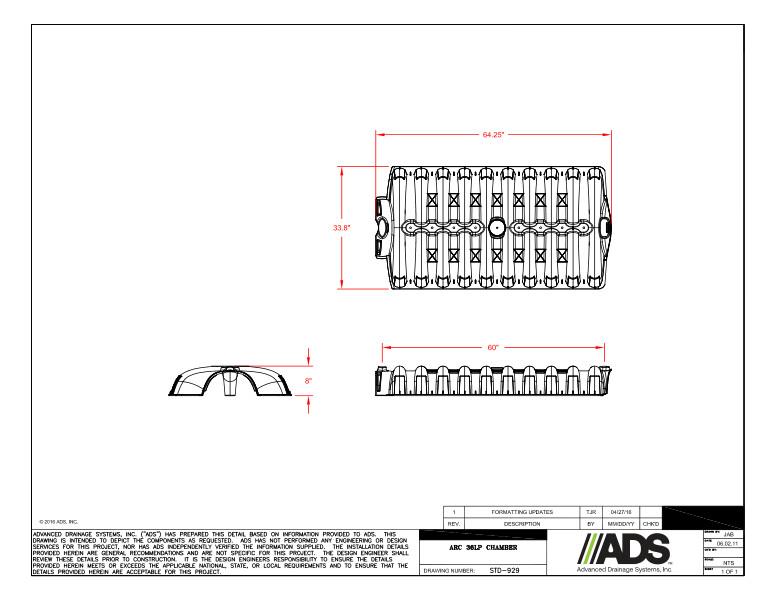

This document is the 929 Arc 36LP Chamber Detail. Three details with dimensions shown.

The first detail shows the 64.25” and 33.8” dimensions of the chamber. The top detail shows an 8” depth and the 3rd detail shows the chamber width of 60”.

929 Arc 36LP Chamber Detail
