This document is the 4" & 6" Injection Molded End Caps (HDPE Dual Wall Injection Molded End Caps Fittings). A diagram with table and notes provided.

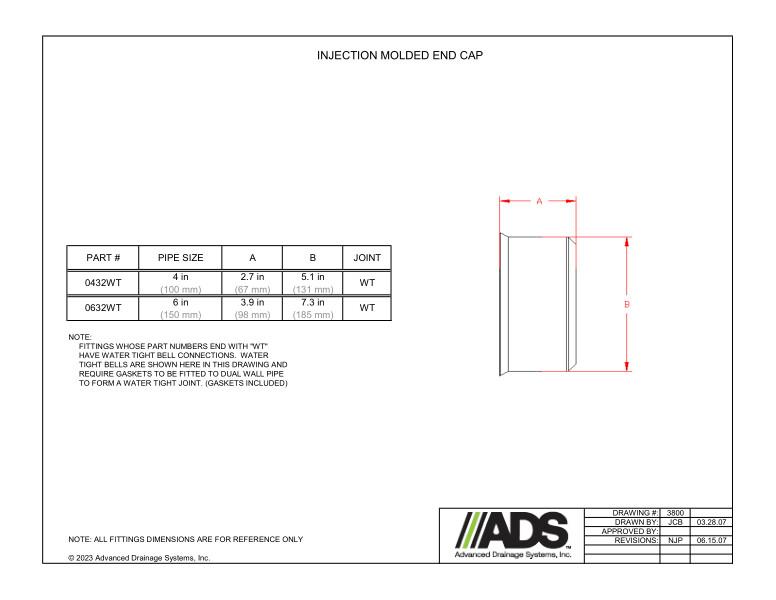

The illustrations of the end cap shows the A/B dimensions.

A table with part number, pipe size and A/B/Joint dimensions is provided.

Fittings whose part numbers end with “WT” have water tight bell connections. Water tight bells require gaskets to be fitted to dual wall pipe to form a water tight joint. Gaskets are included. All fittings dimensions are for reference only.
