3" - 6" Internal End Plug (HDPE Single Wall Fittings)

Filename:
3" - 6" Internal End Plug (HDPE Single Wall Fittings).pdf

Download Document (pdf) View in Browser
3" - 6" Internal End Plug (HDPE Single Wall Fittings)

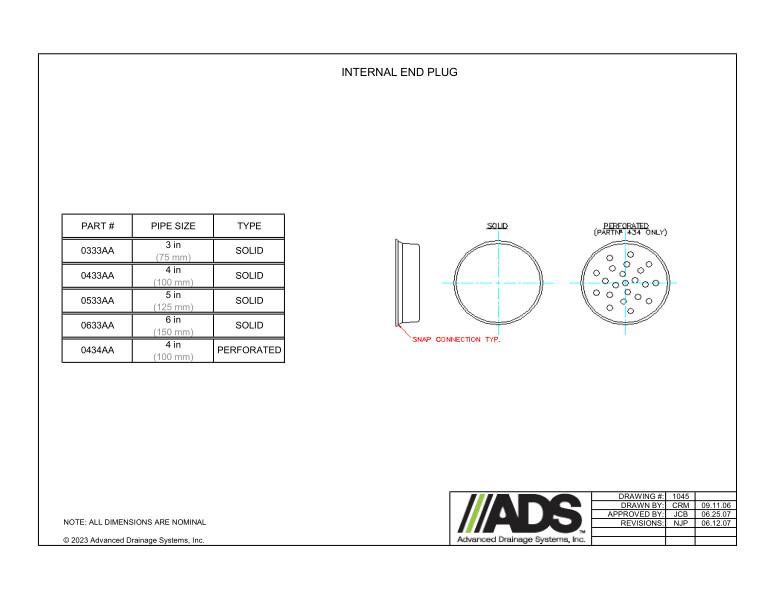

This document is the 3”- 6” Internal End Plug (HDPE Single Wall Fittings). A solid and perforated diagram with table provided.

The internal end plug illustration of the solid detail shows the snap connection TYP. The perforated diagram is noted by part number 434 only.

A table with part number, pipe size and type is provided.

All dimensions are nominal.
