6" x 4" - 12" x 10" Fabricated Reducers (HDPE Dual Wall Fabricated Reducers Fittings)
Filename:
6" x 4" - 12" x 10" Fabricated Reducers (HDPE Dual Wall Fabricated Reducers Fittings).pdf

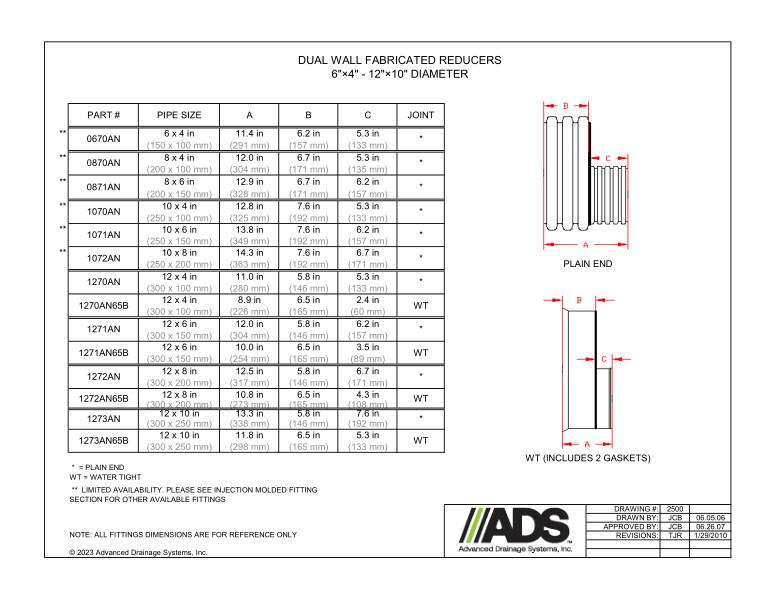

This document is the 6" x 4" - 12" x 10" Fabricated Reducers (HDPE Dual Wall Fabricated Reducers Fittings). Diagrams with table provided.
The Dual Wall Fabricated Reducers 6" x 4" - 12" x 10" diameter plain end diagram shows the A/B/C dimensions. The WT diagram includes 2 gaskets and shows the A/B/C dimensions.
A table with part number, pipe size and A/B/C/Joint dimensions is provided.
All fittings dimensions are for reference only.
