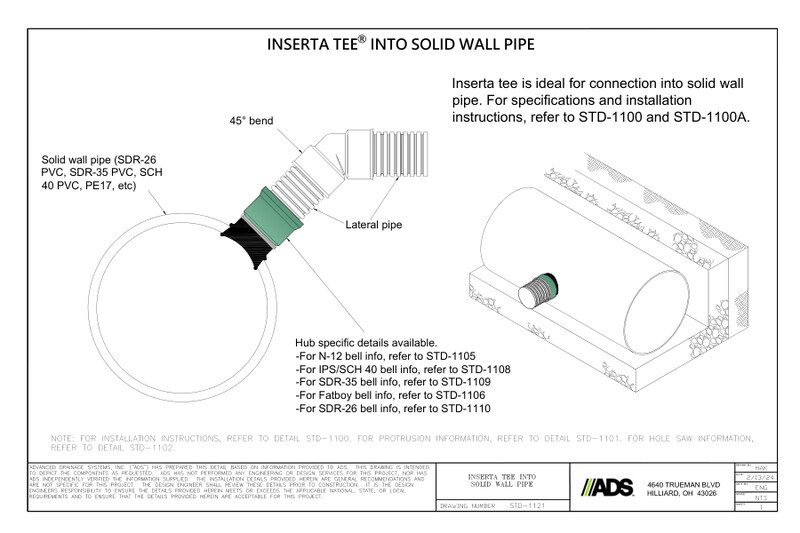

This document explains Inserta Tee Into Solid Wall Pipe. A detail of the Inserta Tee, pipe and hub specifics discussed.

Inserta tee is ideal for connection into solid wall pipe. A detail showing the solid wall pipe, with 45º bend and lateral pipe provided.

Hub specific details available:

-For N-12 bell info, refer to STD-1105

-For IPS/SCH 40 bell info, refer to STD-1108

-For SDR-35 bell info, refer to STD-1109

-For Fatboy bell info, refer to STD-1106

-For SDR-26 bell info, refer to STD-1110
