Taylor End Plug Specification

This specification describes 4”- 60” (100 to 1500mm) ADS End Plugs, as manufactured by Taylor Made Plastics, Inc., for use in temporary storm drainage, gravity-flow applications.

The requirements for the Taylor End Plug call for it to be made of polyethylene with a gasket sized to fit in the spigot end of the corrugated polyethylene pipe.

The joint performance indicates that the end plug provides a soil-tight joint per ASTM F2306.

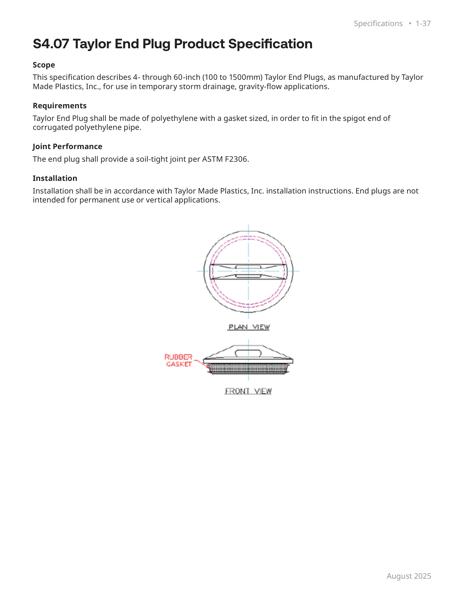

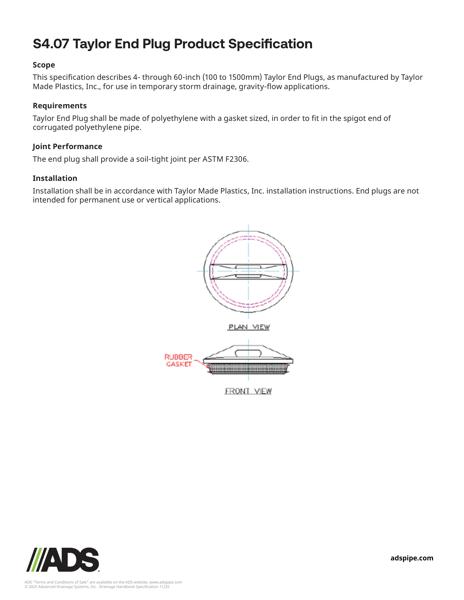

Installation shall be in accordance with Taylor Made Plastics, Inc., installation instructions. End plugs are not intended for permanent use or vertical applications. A diagram of the plan view and the front view is provided in the specification.
