42" × 12" - 60" × 24" Reducers IB Bell/Bell (HP Storm Reducers Fittings Manual)

Filename:
42" × 12" - 60" × 24" Reducers IB Bell/Bell (HP Storm Reducers Fittings Manual).pdf

42" × 12" - 60" × 24" Reducers IB Bell/Bell (HP Storm Reducers Fittings Manual)

This document is the 42”x12”-60”x24” Reducers IB Bell/Bell (HP Storm Reducers Fittings Manual). Table with pipe size and diagram with descriptions included.

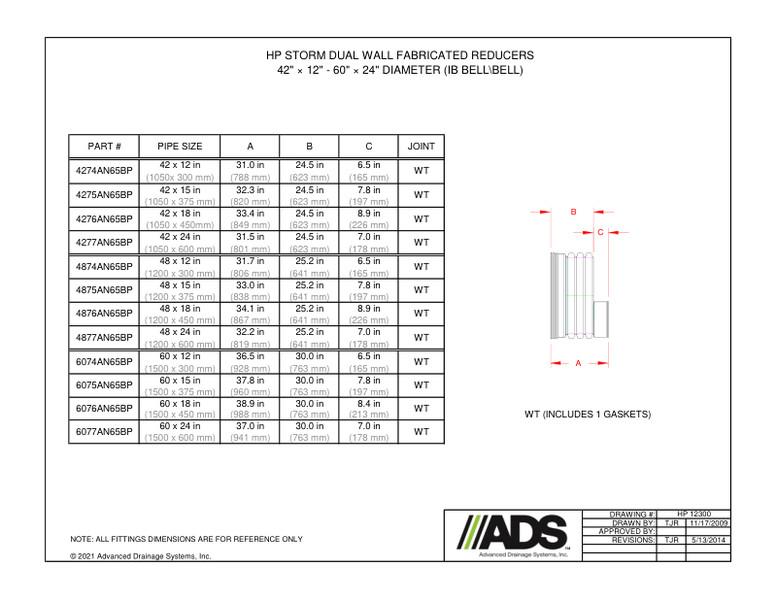

The HP Storm Dual Wall Fabricated Reducers 42”x12”-60”x24” diameter (IB Bell/Bell) is shown with a chart that lists the values for Part number, pipe size, A/B/C and Joint. Diagram with WT (includes 1 gasket) provided.
