24" Adapter - N-12 Dual Wall Bell x SWR Spigot Nyloplast Detail
Filename:
24" Adapter - N-12 Dual Wall Bell x SWR Spigot Nyloplast Detail.dwg

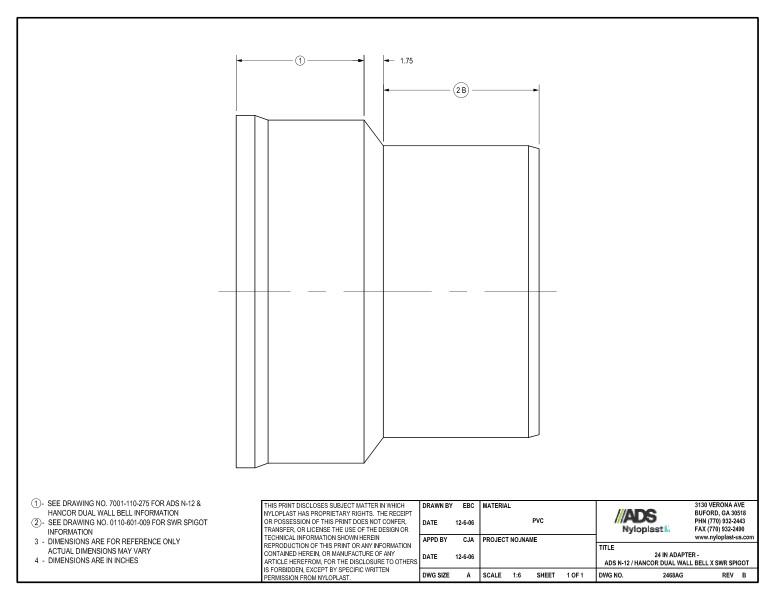

This document is the 24” Adapter - N-12 Dual Wall Bell x SWR Spigot Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. A note on dimension 2 references drawing for SWR spigot information. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.
An illustration showing the dimensions is
provided.
