This document is the HDPE Dual Wall Fabricated Bends Fittings Manual. Bend illustrations, notes and table provided.

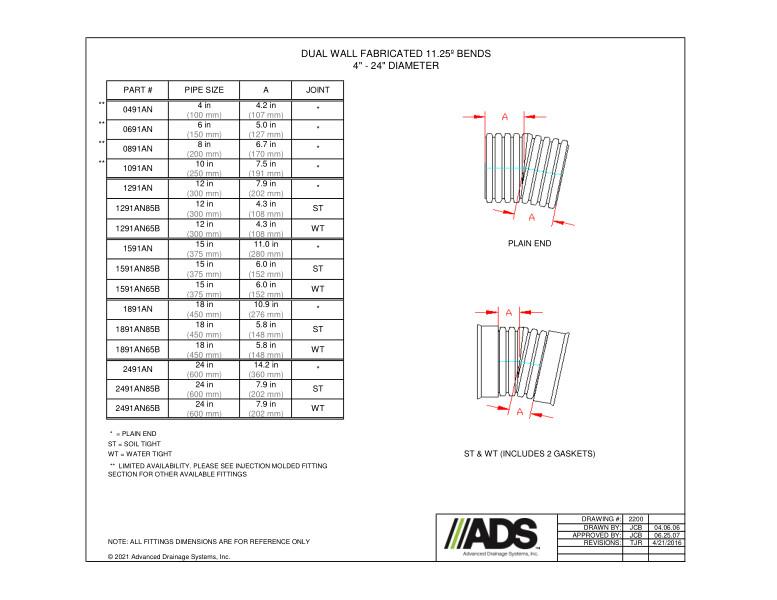

The illustrations of the dual wall fabricated 11.25 degree Bends 4”-24” diameter shows the plain end and ST & WT (includes 2 gaskets) of the Bends.

A table with part number, pipe size and A/Joint dimensions is provided.

All fittings dimensions are for reference only.
