18" x 4" - 18" x 10" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings)
Filename:
18" x 4" - 18" x 10" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings).pdf
![18" x 4" - 18" x 10" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings)](https://assets.adspipe.com/m/55ef796426886998/webimage-18-x-4-18-x-10-Fabricated-Reducing-Tees-HDPE-Dual-Wall-Fabricated-Tees-Fittings.jpg)

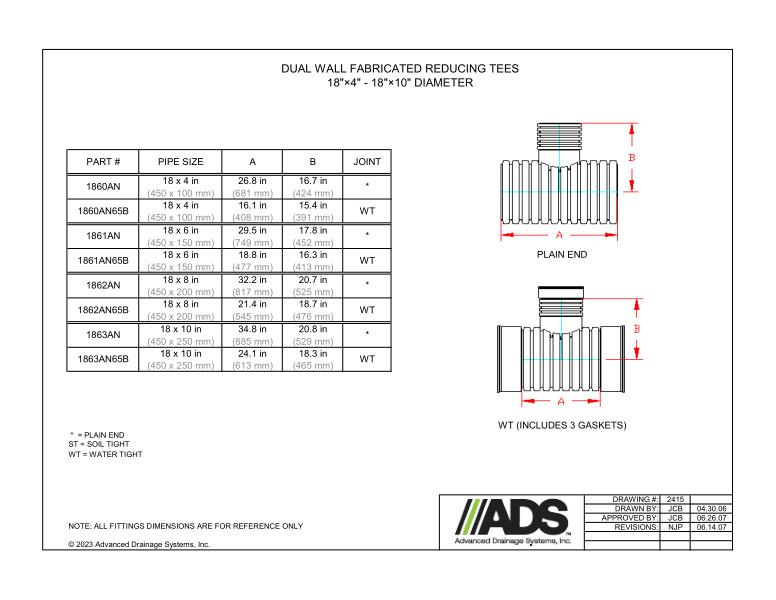

This document is the 18" x 4" - 18" x 10" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings). Diagrams with table provided.
The dual wall Fabricated Reducing Tees 18" x 4" - 18" x 10" diameter is shown in a Plain End diagram with A/B dimensions and a WT (includes 3 gaskets) Tee that shows A/B dimensions.
A table with the information for part number, pipe size and A/B/Joint sizes is provided.
All fittings dimensions are for reference only.
