STD-1104 Inserta Tee® Fittings C900 PVC Gasketed Bell Gravity Application Detail
Filename:
STD-1104 Inserta Tee® Fittings C900 PVC Gasketed Bell Gravity Application Detail.pdf

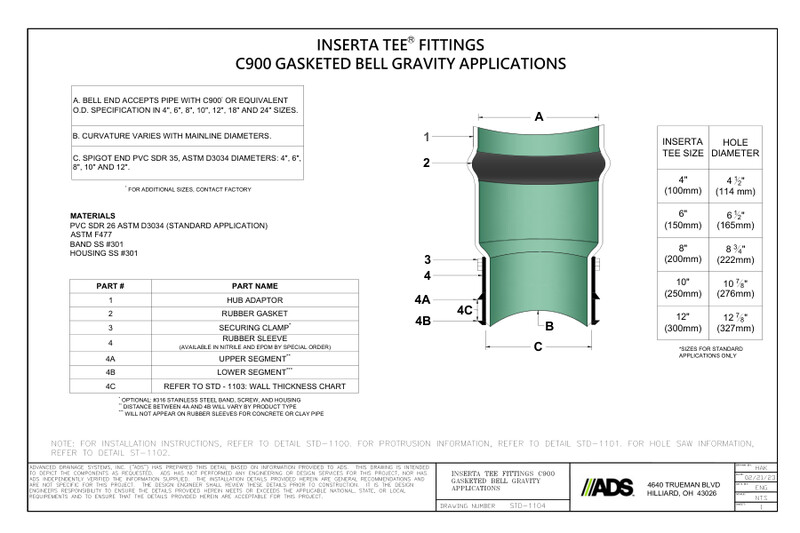

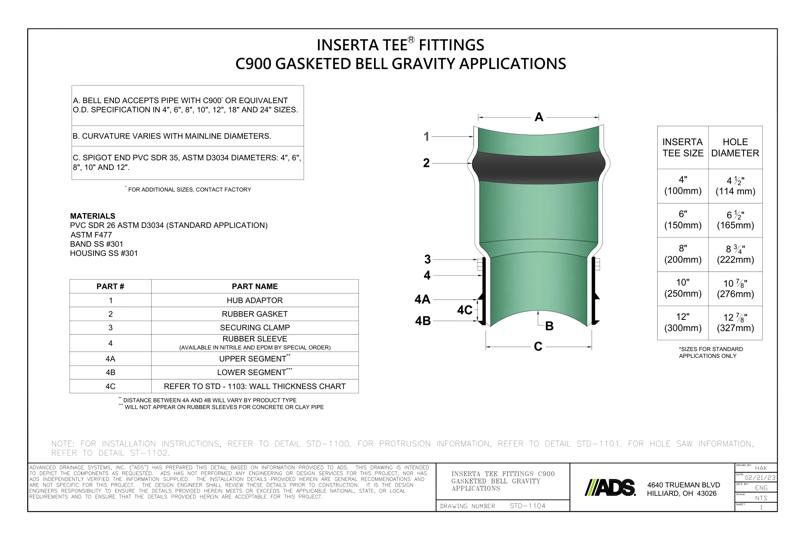

The drawing gives information on an Inserta Tee® connection for C900 gasketed bell gravity applications.
An Inserta Tee connection is made of a PVC hub adaptor, a rubber gasket and a stainless steel securing clamp. The bell end of the Inserta Tee accepts C900 or equivalent pipe in outside diameter specification sizes of 4”, 6”, 8”, 10”, 12”, 18”, 24” and 30” (100, 150, 200, 250, 300, 450, 600 and 750 mm).
The spigot end is a PVC SDR 35 for diameters 4”, 6”, 8”, 10”, 12”, 18”, 24” and 30” (100, 150, 200, 250, 300, 450, 600 and 750 mm).
The Inserta Tee’s curvature varies based on the mainline diameter.
