18" Inline Drain Quick Spec Installation Nyloplast Detail
Filename:
18" Inline Drain Quick Spec Installation Nyloplast Detail.dwg
![18" Inline Drain Quick Spec Installation Nyloplast Detail](https://assets.adspipe.com/m/3714b231216f92fa/webimage-18-Inline-Drain-Quick-Spec-Installation-Nyloplast-Detail.jpg)
This document is the 18” Inline Drain Quick Spec Installation Nyloplast Detail. It shows the nyloplast inline drain with descriptions.

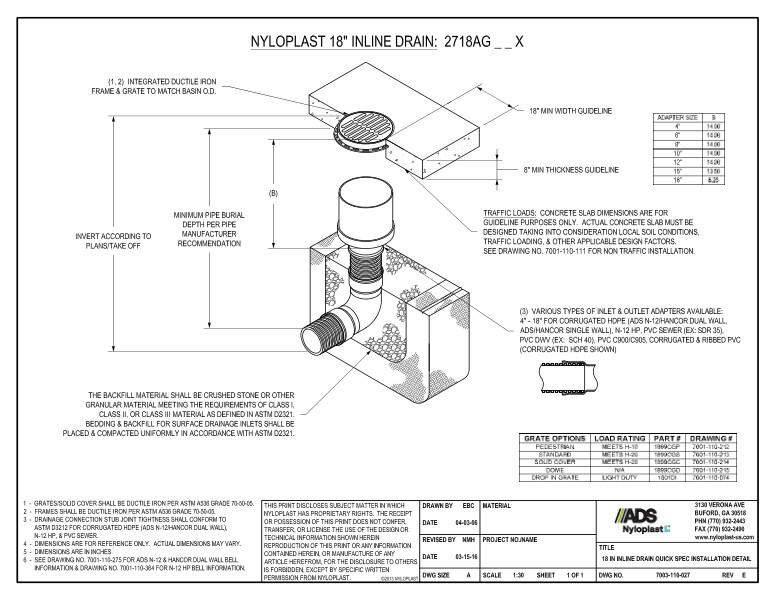

The illustration shows the integrated ductile iron frame & grate to match basin, minimum pipe burial, inverts, various types of inlet/outlet adapters, 18” minimum width/8” minimum thickness, traffic loads and backfill material made from crushed stone or other granular material.
A chart with various adapter sizes with B column, and a chart listing grate option, load rating, part and drawing numbers included.
Note 1 states that grates/solid cover shall be ductile iron per ASTM A536 grade 70-50-05. Note 2 states that frames shall be ductile iron per ASTM A536 grade 70-50-05. Note 3 explains that drainage connection stub joint tightness shall conform to ASTM D3212 for corrugated HDPE, N-12 HP & PVC sewer. Note 4 & 5 state that dimensions are for reference only and in inches. Note 6 directs to drawing for ADS N-12, Hancor dual wall bell and N-12 HP bell information.
