24" Standard Locking Grate Assembly Nyloplast Detail
Filename:
24" Standard Locking Grate Assembly Nyloplast Detail.pdf
![24" Standard Locking Grate Assembly Nyloplast Detail](https://assets.adspipe.com/m/efdc7dd52e4920e/webimage-24-Standard-Locking-Grate-Assembly-Nyloplast-Detail.jpg)
This document is the 24" Standard Locking Grate Assembly Nyloplast Detail. It shows illustrations with descriptions.

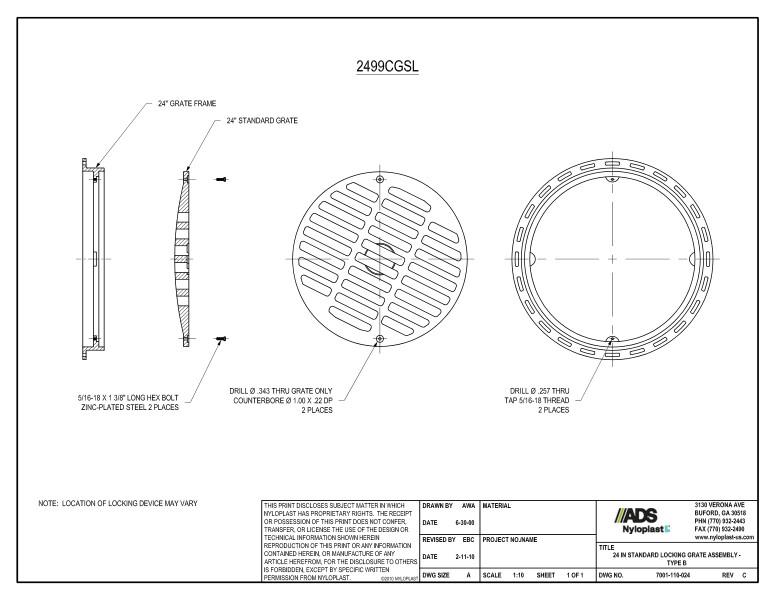

The side view illustrations show the 24” grate frame & 24” Standard cover with 5/16-18 x 1 3/8” long hex bolt zinc-plated steel in 2 places. The top down view shows the grate with drill thru position and the frame drill thru thread position.
A note states that the location of locking device may vary.
