Nyloplast Envirohood for 48" Round Concrete Structures - Outlet Size up to 18" Detail

Filename:
Nyloplast Envirohood for 48" Round Concrete Structures - Outlet Size up to 18" Detail.dwg

Download Document (dwg)
Nyloplast Envirohood for 48" Round Concrete Structures - Outlet Size up to 18" Detail

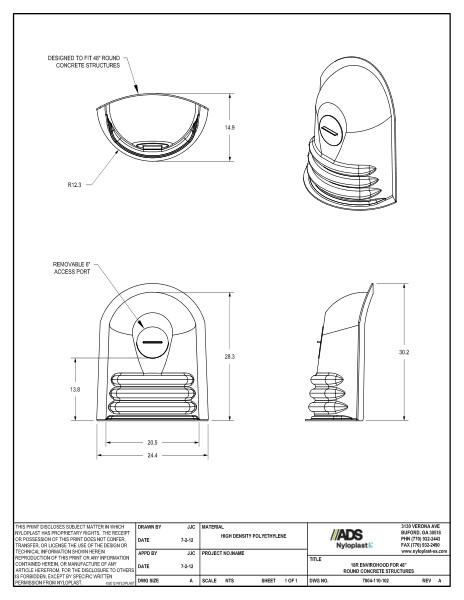

This document is the Nyloplast EnviroHood for 48” Round Concrete Structures – Outlet Size up to 18” Detail. Details with dimensions and nyloplast illustrations shown.

A top down illustration shows the EnviroHood dimensions designed to fit 48” round concrete structures. A side view shows the removable 6” access port with dimensions.

Nyloplast Envirohood for 48" Round Concrete Structures - Outlet Size up to 18" Detail
