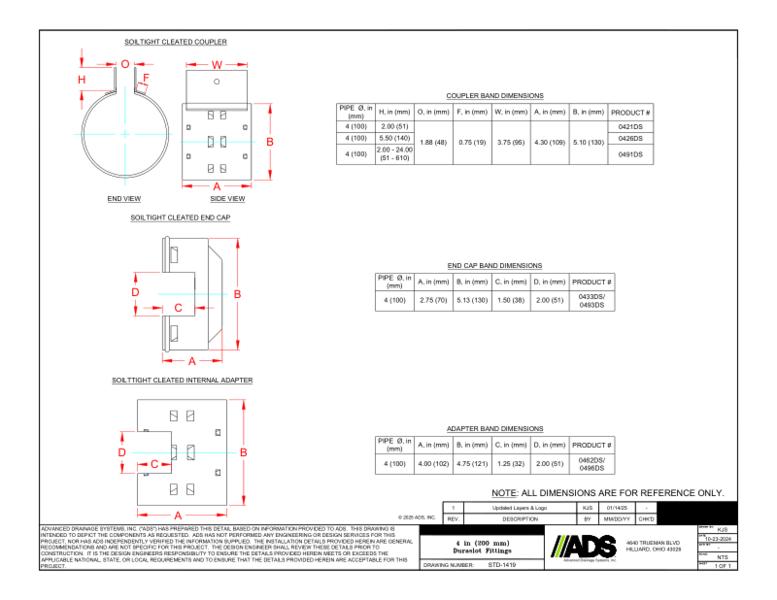

This document shows the 1419 4” Duraslot Fittings. A detail of the Duraslot coupler, end cap and adapter with tables provided.

The Duraslot soil tight cleated coupler detail shows the side view with A/B/W indicators and the end view with H/O/F indicators. The coupler band dimensions table lists the corresponding dimensions with the product number.

The Duraslot soil tight cleated end cap detail shows the A/B/C/D indicators. The end cap band dimensions table lists the corresponding dimensions with the product number.

The Duraslot soil tight cleated internal adapter detail shows the A/B/C/D indicators. The adapter band dimensions table lists the corresponding dimensions with the product number.
