18 x 10 HP Wye with Gasketed SWR Bell Nyloplast Detail
Filename:
18 x 10 HP Wye with Gasketed SWR Bell Nyloplast Detail.pdf
![18 x 10 HP Wye with Gasketed SWR Bell Nyloplast Detail](https://assets.adspipe.com/m/968896778983c5/webimage-18-x-10-HP-Wye-with-Gasketed-SWR-Bell-Nyloplast-Detail.jpg)

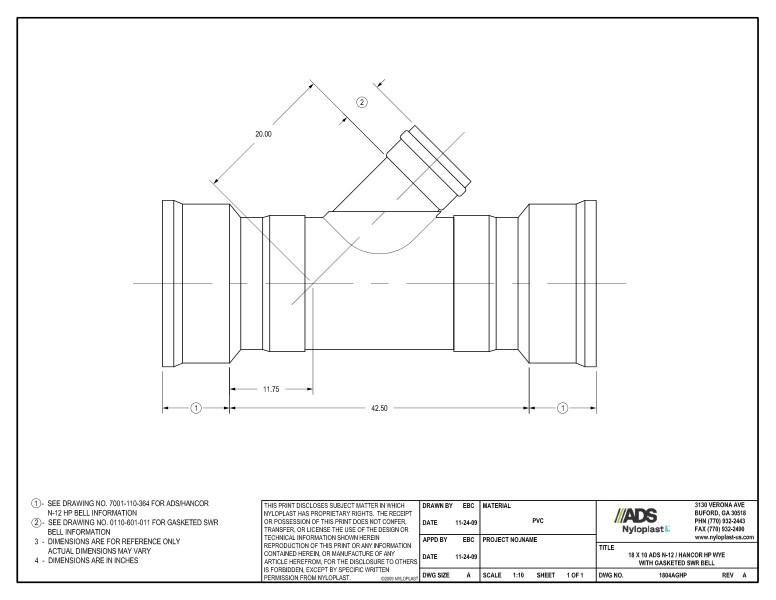

This document is the 18 x 10 HP Wye with Gasketed SWR Bell Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references ADS/Hancor N-12 Bell for more information. A note on dimension 2 references Gasketed SWR Bell for more information. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
