21" x 4" - 21" x 12" Fabricated Reducers (HDPE Dual Wall Fabricated Reducers Fittings)
Filename:
21" x 4" - 21" x 12" Fabricated Reducers (HDPE Dual Wall Fabricated Reducers Fittings).pdf
![21" x 4" - 21" x 12" Fabricated Reducers (HDPE Dual Wall Fabricated Reducers Fittings)](https://assets.adspipe.com/m/6e10119f3d22ab45/webimage-21-x-4-21-x-12-Fabricated-Reducers-HDPE-Dual-Wall-Fabricated-Reducers-Fittings.jpg)

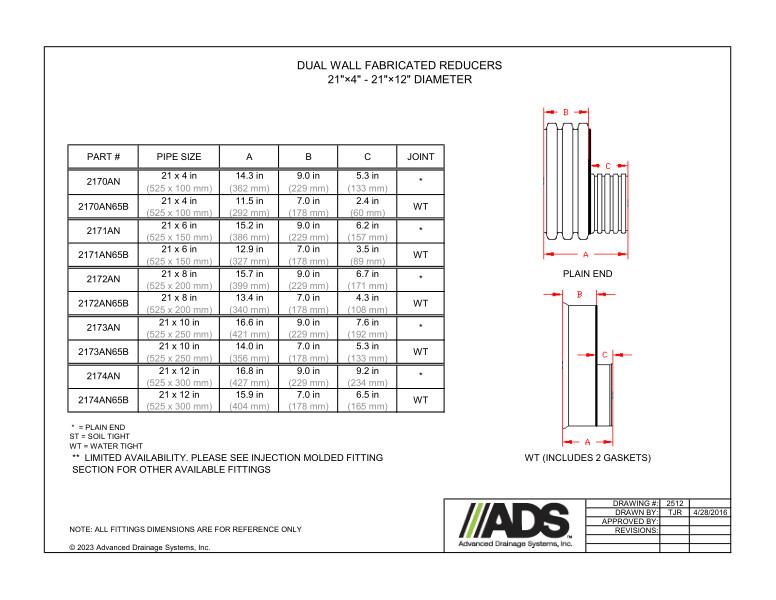

This document is the 21" x 4" - 21" x 12" Fabricated Reducers (HDPE Dual Wall Fabricated Reducers Fittings). Diagrams with table provided.
The Dual Wall Fabricated Reducers 21" x 4" - 21" x 12" diameter plain end diagram shows the A/B/C dimensions. The WT diagram includes 2 gaskets and shows the A/B/C dimensions.
A table with part number, pipe size and A/B/C/Joint dimensions is provided.
All fittings dimensions are for reference only.
