This document is the 10” N-12 Dual Wall Elbow – 22.5 Degree Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.

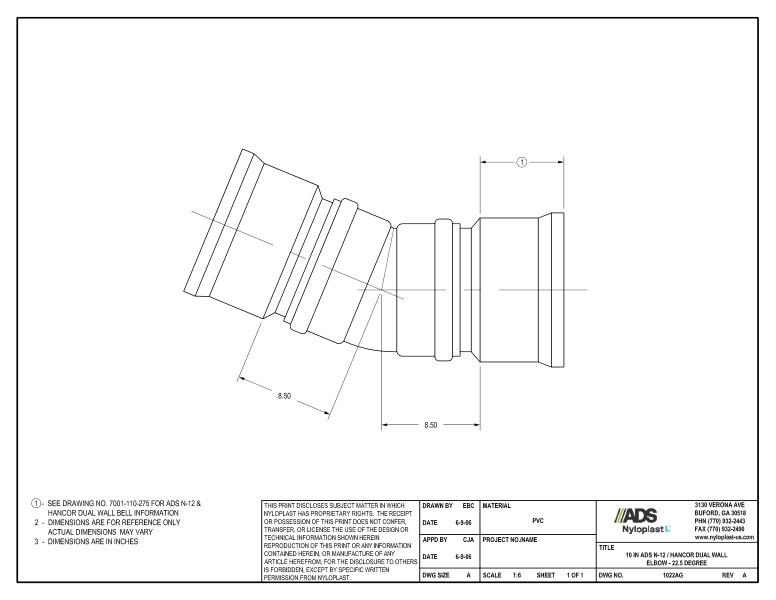

An illustration showing the dimensions is provided.
