11.25º Bends 12"-60" HP Storm - Plain End (HP Storm Bends Fittings Manual)

Filename:
11.25º Bends 12"-60" HP Storm - Plain End (HP Storm Bends Fittings Manual).pdf

Download Document (pdf) View in Browser
11.25º Bends 12"-60" HP Storm - Plain End (HP Storm Bends Fittings Manual)

This document is the 11.25º Bends 12"-60" – Plain End (HP Storm Bends Fittings Manual). Diagram with table provided.

A table with part number, pipe size and A/Joint dimensions is provided.

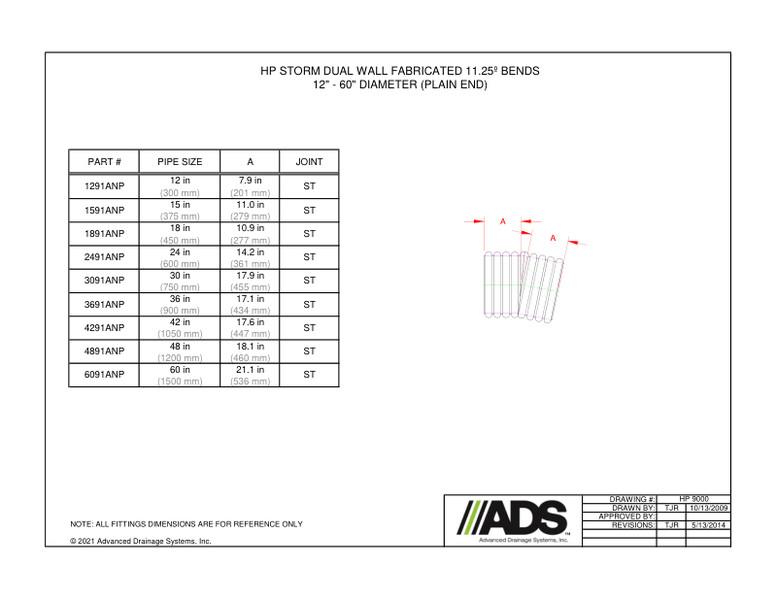

The diagram of the HP Storm Dual Wall Fabricated 11.25º bends 12"-60" diameter (Plain End) is shown.

All fittings dimensions are for reference only.

11.25º Bends 12"-60" HP Storm - Plain End (HP Storm Bends Fittings Manual)
