204A 12-60 HDPE N-12 Compression (Cast-in) Structure Connection Detail

Filename:
204A 12-60 HDPE N-12 Compression (Cast-in) Structure Connection Detail.pdf

Download Document (pdf) View in Browser
204A 12-60 HDPE N-12 Compression (Cast-in) Structure Connection Detail

This document is the 204A 12-60 HDPE N-12 Compression (Cast-in) Structure Connection Detail. A detail, chart and notes provided.

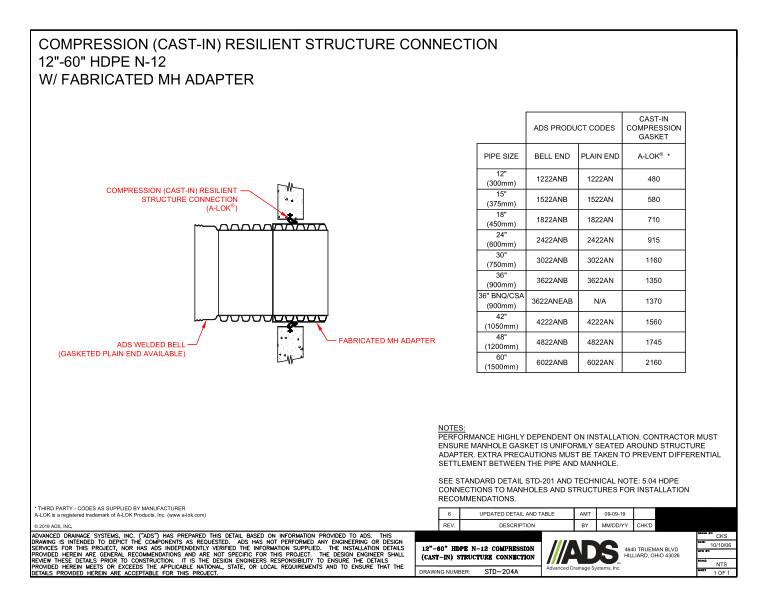

The detail shows the compression (cast-in) resilient structure connection (A-LOK), ADS welded bell (gasketed plain end available) and the fabricated MH adapter.

A chart with values pipe size, ADS product codes for bell end and plain end, cast-in compression gasket for A-LOK.

Notes recommend performance is highly dependent on installation. Manhole gasket must be uniformly seated around structure adapter.

204A 12-60 HDPE N-12 Compression (Cast-in) Structure Connection Detail
