90º Bends 12"-24" HP Storm - Bell/Bell (HP Storm Bends Fittings Manual)

Filename:
90º Bends 12"-24" HP Storm - Bell/Bell (HP Storm Bends Fittings Manual).pdf

90º Bends 12"-24" HP Storm - Bell/Bell (HP Storm Bends Fittings Manual)

This document is the 90º Bends 12"-24" HP Storm – Bell/Bell (HP Storm Bends Fittings Manual). Diagram with table provided.

A table with part number, pipe size and A/Joint dimensions is provided.

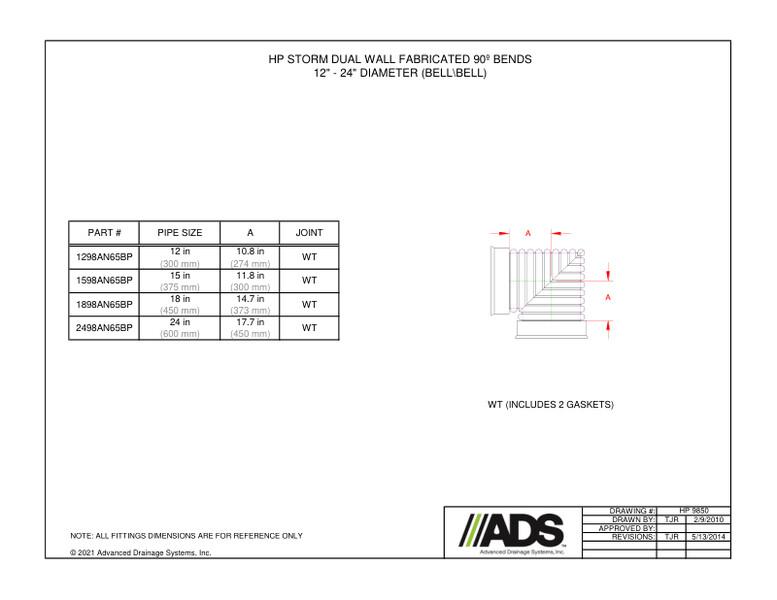

The diagram of the HP Storm Dual Wall Fabricated 90º Bends 12"-24" diameter (Bell/Bell) WT (includes 2 gaskets) is shown.

All fittings dimensions are for reference only.
