48" x 30" - 48" x 42" Fabricated Reducers (HDPE Dual Wall Fabricated Reducers Fittings)
Filename:
48" x 30" - 48" x 42" Fabricated Reducers (HDPE Dual Wall Fabricated Reducers Fittings).pdf
This document is the 48" x 30" - 48" x 42" Fabricated Reducers (HDPE Dual Wall Fabricated Reducers Fittings). Diagrams with table provided.

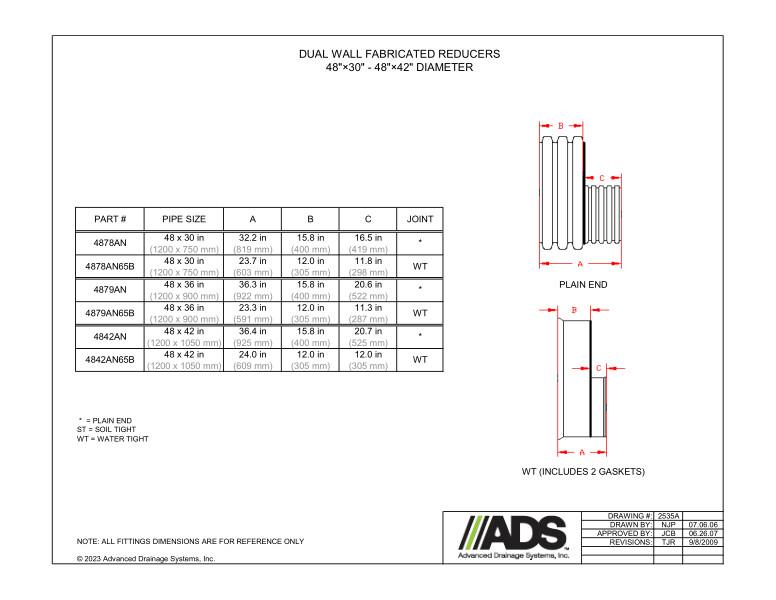

The Dual Wall Fabricated Reducers 48" x 30" - 48" x 42" diameter plain end diagram shows the A/B/C dimensions. The WT diagram includes 2 gaskets and shows the A/B/C dimensions.
A table with part number, pipe size and A/B/C/Joint dimensions is provided.
All fittings dimensions are for reference only.
