911C Bio 2 Biodiffuser Serial Installation Detail
Filename:
911C Bio 2 Biodiffuser Serial Installation Detail.dwg
This document is the 911C Bio 2 Biodiffuser Serial Installation Detail. Details with descriptions and notes are included.

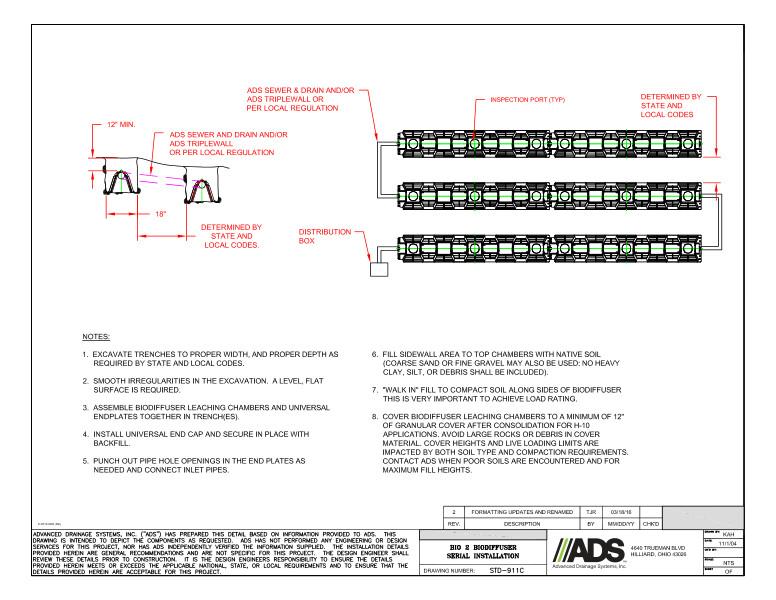

The details show the ADS sewer and drain and/or ADS triplewall OR per local regulations, the distribution box and inspection port.
