This document is the 204D 12-36 HDPE N-12 Z-LOK Booted (Cast-In) Structure Connection Detail. A detail with charts and notes provided.

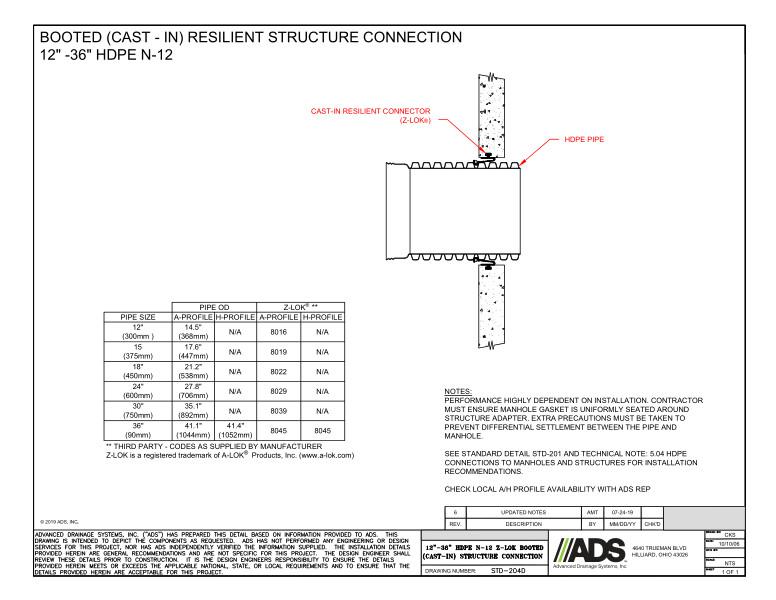

The detail shows the Cast-In resilient structure connection (Z-LOK) and the HDPE pipe.

A chart features the Pipe OD and Z-LOK values for pipe size, A-Profile and H-Profile.

Notes recommend performance is highly dependent on installation. Manhole gasket must be uniformly seated around structure adapter. Check local A/H profile availability with ADS.
