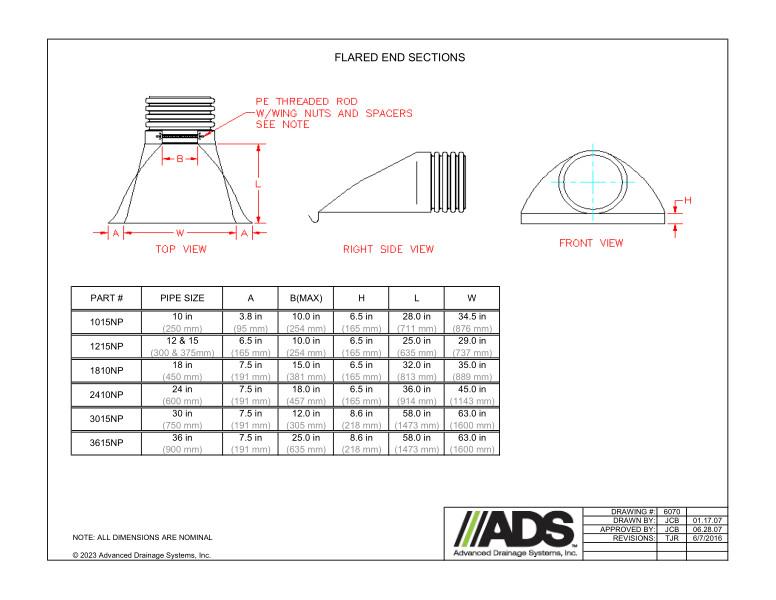

This document is the 10” x 36” Flared End Sections (HDPE Dual Wall Miscellaneous Fittings). Diagrams with table provided.

The Flared End Sections top view diagram is shown with PE threaded rod with wing nuts and spacers and A/B dimensions. The right side view diagram is shown, and front view diagram with H dimension is shown.

A table with the information for part number, pipe size and A/B(MAX)/H/L/W sizes is provided.

All dimensions are nominal.
