8 x 8 N-12 Dual Wall Tee Nyloplast Detail
Filename:
8 x 8 N-12 Dual Wall Tee Nyloplast Detail.pdf
![8 x 8 N-12 Dual Wall Tee Nyloplast Detail](https://assets.adspipe.com/m/564357b1c12129a2/webimage-8-x-8-N-12-Dual-Wall-Tee-Nyloplast-Detail.jpg)

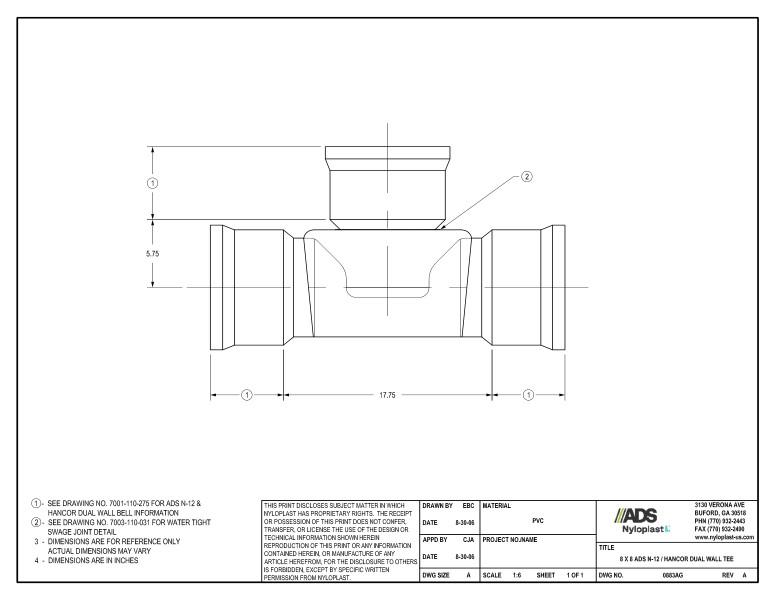

This document is the 8 x 8 N-12 Dual Wall Tee Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 refers to drawing for water tight SWAGE joint detail. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
