8 X 8 X 8 Downspout Adapter Nyloplast Detail
Filename:
8 X 8 X 8 Downspout Adapter Nyloplast Detail.dwg

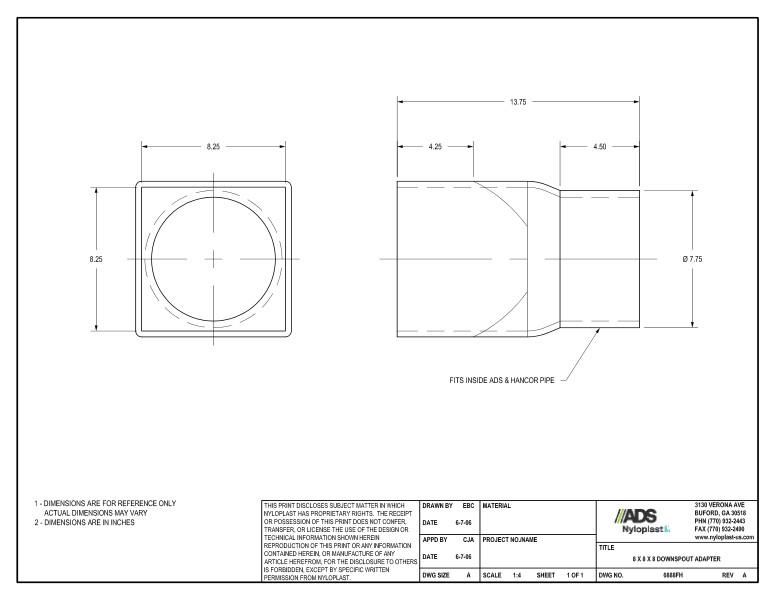

This document is the 8 x 8 x 8 N-12 Downspout Adapter Nyloplast Detail. Dimensions and nyloplast illustration shown.
The detail shows the dimensions and indicates how it fits inside ADS & Hancor pipe.
A note states that dimensions are for reference only. Note 2 specifies that dimensions are in inches.
