10" Bronze Grate Assembly (Inline Drain) Nyloplast Detail

Filename:
10" Bronze Grate Assembly (Inline Drain) Nyloplast Detail.pdf

Download Document (pdf) View in Browser
10" Bronze Grate Assembly (Inline Drain) Nyloplast Detail

This document is the 10" Bronze Grate Assembly (Inline Drain) Nyloplast Detail. It shows the nyloplast grate with dimensions.

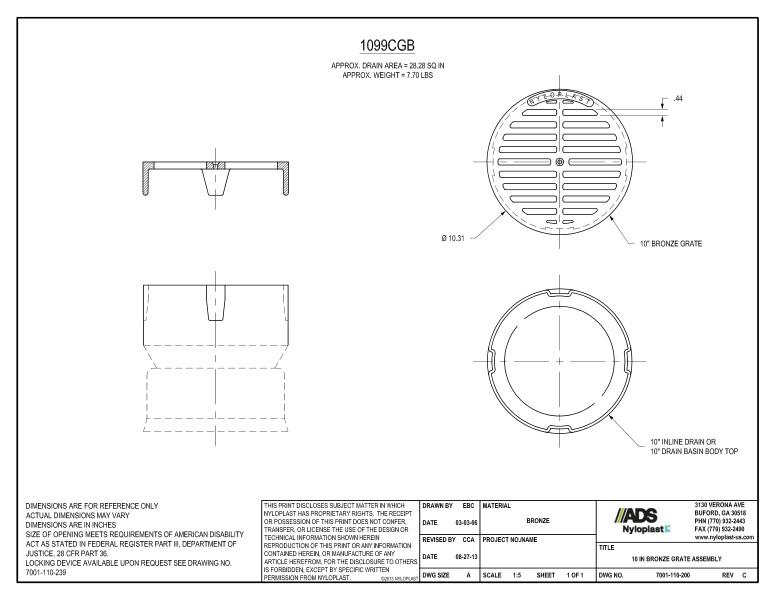

The illustration shows the nyloplast 10” Bronze grate with dimensions for approximate drain area of 28.28 SQ inches and approximate weight of 7.70 LBS. A top and side view is shown. 10” inline drain or 10” drain basin body top illustration included.

Notes detail that dimensions are for reference only and in inches. Size of opening meets requirements of American Disability Act. The locking device is available upon request.
