This document is the 12”-24” Fabricated Stub (HP Storm Manifolds Fittings Manual). Table with pipe size and diagram with descriptions included.

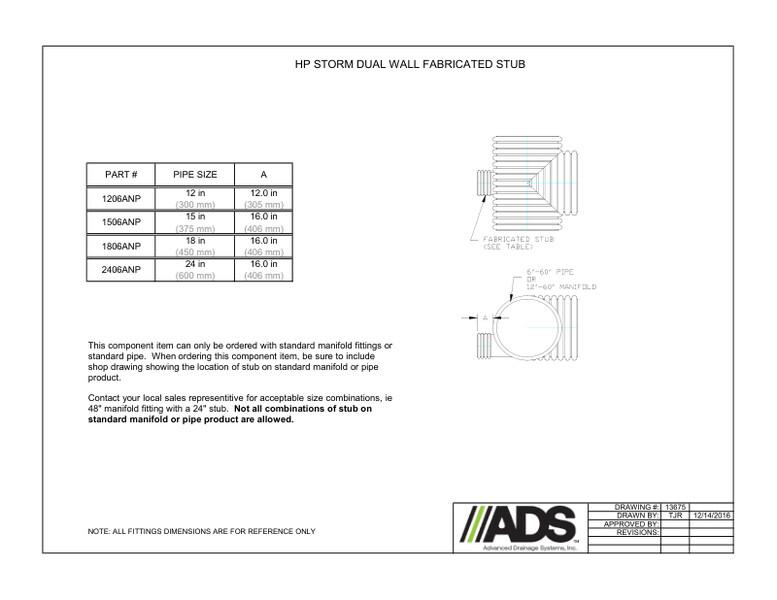

The HP Storm Dual Wall Fabricated stub is shown with a chart that lists the values for Part number, pipe size and A. A diagram showing the fabricated stub and a top view diagram showing the 6’-60’ pipe or 12’-60’ manifold opening provided.

This component item can only be ordered with standard manifold fittings or standard pipe. When ordering this component item, be sure to include shop drawing showing the location of stub on standard manifold or pipe product.

Contact your local sales representative for acceptable size combinations, ie 48" manifold fitting with a 24" stub. Not all combinations of stub on standard manifold or pipe product are allowed.
