24" N-12 Dual Wall Repair Coupling Nyloplast Detail
Filename:
24" N-12 Dual Wall Repair Coupling Nyloplast Detail.dwg
This document is the 24” N-12 Dual Wall Repair Coupling Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.

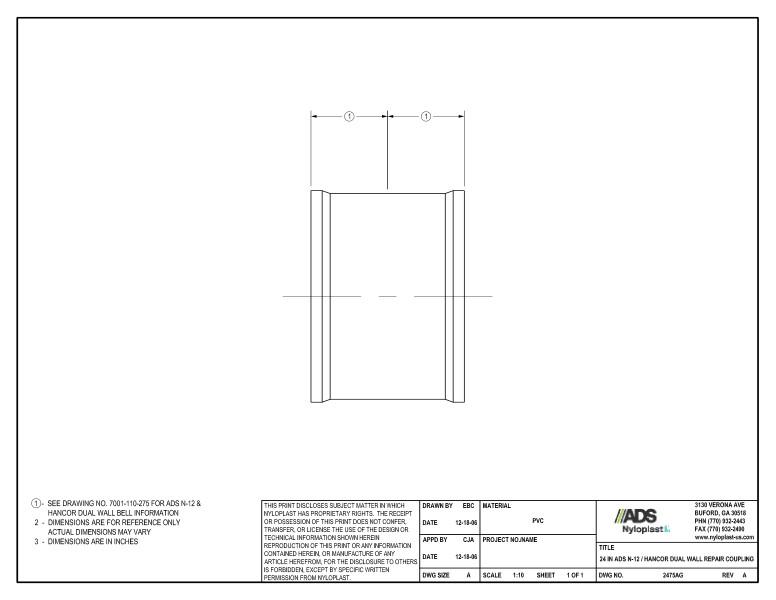

An illustration showing the dimensions is provided.
