12" Solid Cover Assembly Nyloplast Detail

Filename:
12" Solid Cover Assembly Nyloplast Detail.pdf

12" Solid Cover Assembly Nyloplast Detail

This document is the 12" Solid Cover Assembly Nyloplast Detail. It shows the nyloplast solid cover with dimensions.

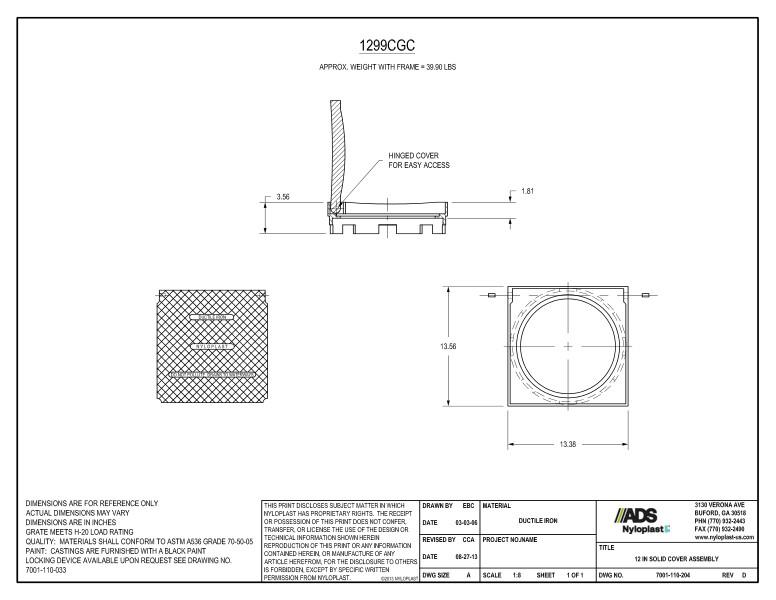

The illustrations show the nyloplast 12” solid cover with dimensions with approximate weight of 39.90 LBS. A top and side view is shown with hinged cover for easy access.

Notes detail that dimensions are for reference only and in inches. Grate meets H-20 load rating. Materials shall conform per ASTM A536 grade 70-50-05. Castings are furnished with a black paint. The locking device is available upon request.
