8" Solid Locking Cover Assembly Nyloplast Detail

Filename:
8" Solid Locking Cover Assembly Nyloplast Detail.pdf

8" Solid Locking Cover Assembly Nyloplast Detail

This document is the 8" Solid Locking Cover Assembly Nyloplast Detail. It shows the solid cover illustrations with descriptions.

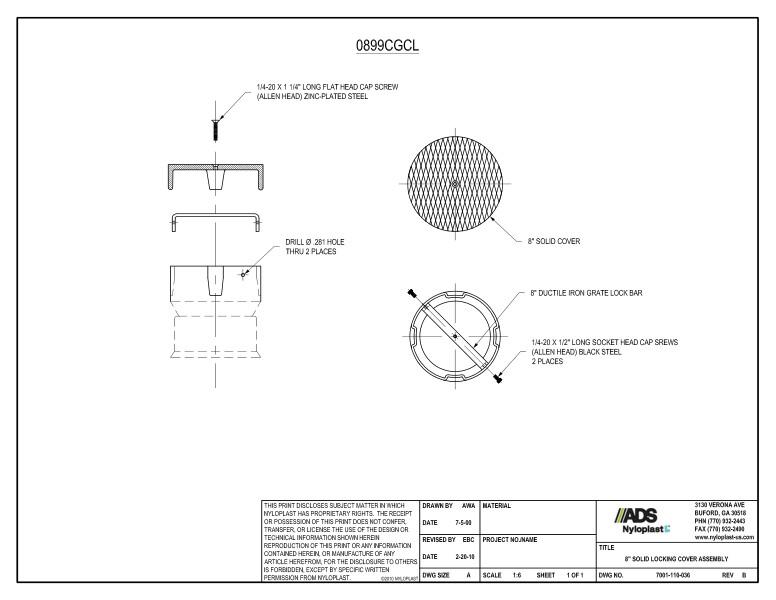

The top down view illustrations shows the 8" solid cover, 8" ductile iron grate lock bar and ¼-20 FHCS x 1/2” long socket head cap screws (allen head) black steel 2 places. The side view shows the ¼-20 FHCS x 1 1/4” long flat head cap screws (allen head) zinc-plated steel and drill hole in 2 places.
