12 x 6 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail
Filename:
12 x 6 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail.pdf
![12 x 6 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail](https://assets.adspipe.com/m/1e979165936c869a/webimage-12-x-6-N-12-Dual-Wall-Tee-with-Gasketed-SWR-Bell-Nyloplast-Detail.jpg)

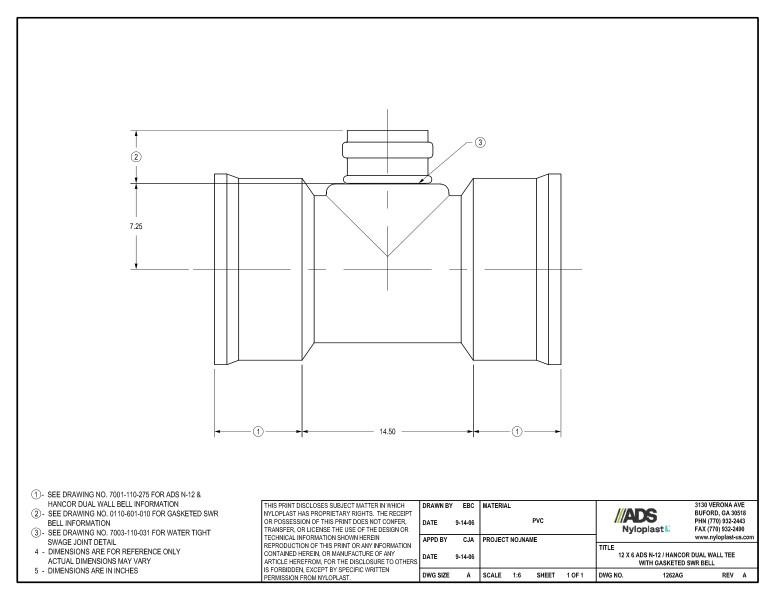

This document is the 12 x 6 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 refers to a drawing for gasketed SWR Bell information. Note 3 refers to drawing for water tight SWAGE joint detail. A note on dimension 4 states that dimensions are for reference only. Note 5 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
