4"-24" External Snap Coupling (HDPE Dual Wall Couplers Fittings)

This document is the HDPE Dual Wall Couplers - External Snap Coupling 4”-24” Diameter. Illustration and reference chart is shown.

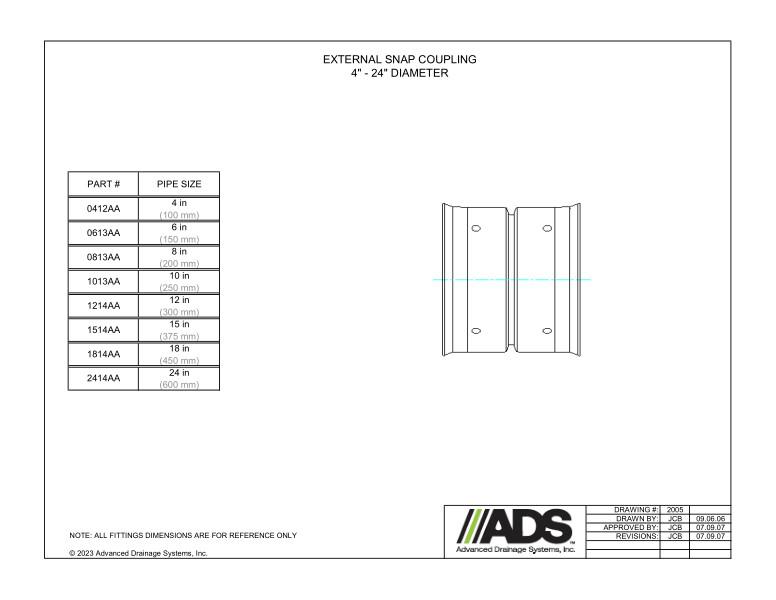

The External Snap Coupling 4”-24” diameter side view illustration is shown. A table with part number and pipe size is provided.

All fittings dimensions are for reference only.

4"-24" External Snap Coupling (HDPE Dual Wall Couplers Fittings)
