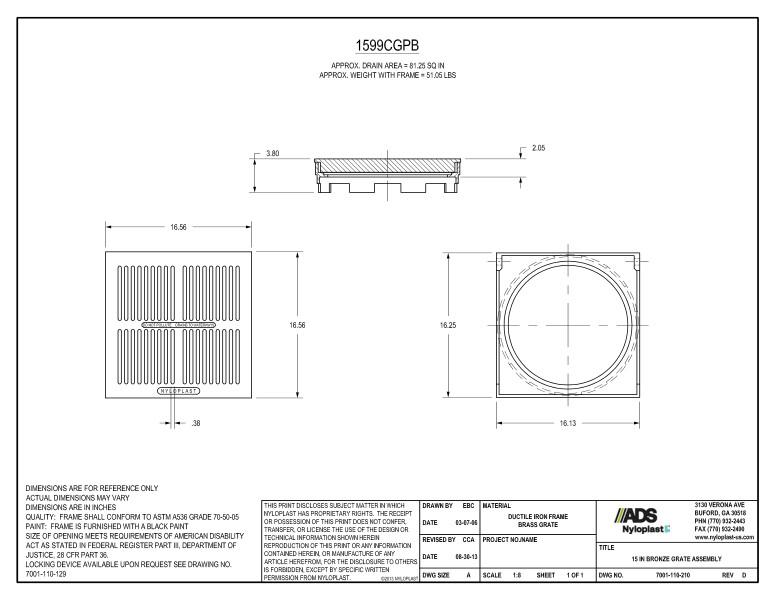

This document is the 15" Bronze Grate Assembly Nyloplast Detail. It shows the nyloplast grate and frame with dimensions.

The illustration shows the nyloplast grate and frame with dimensions for approximate drain area of 81.25 SQ inches and approximate weight of 51.05 LBS. A top and side view is shown.

Notes detail that dimensions are for reference only and in inches. Frame shall conform to ASTM A536 grade 70-50-05. Frame is furnished with a black paint. The size of opening meets the American Disability Act. The locking device is available upon request.
