MC-7200 StormTech Full Detail Sheet with Notes

MC-7200 StormTech Chamber Specifications.

This detail sheet features the MC-7200 StormTech Chamber Specifications. Diagrams and inspection/maintenance steps included.

MC-7200 StormTech Chamber Specifications are that chambers will be StormTech MC-7200, chambers will be arch-shaped, meet requirements of ASTM F2418-16a, "STANDARD SPECIFICATION FOR POLYPROPYLENE (PP) CORRUGATED WALL STORMWATER COLLECTION CHAMBERS" CHAMBER CLASSIFICATION 60x101, chamber rows shall provide continuous, unobstructed internal space with no internal supports that would impede flows or limit maintenance access, structural design, backfill and installation requirements to specified load factors, chambers shall be designed, tested and allowable load configurations as to ASTM F2787, follow requirements for handling and installation, chambers approved by site design engineer allowed, and chambers and endcaps be produced at an ISO 9001 certified manufacturing facility.

Notes for bidding and installation of MC-7200 chamber system are that the chambers will be installed after manufacturer approval, installation done per StormTech MC-7200 construction guide, 3 backfill recommendations, foundation stone to be level and compacted, joints between chambers to be properly seated, maintain spacing between rows, inlet and outlet manifold insertion minimums, embedment stone must meet AASHTO M43 designation, stone shall be brought up evenly around the chambers to not distort shape, stone must be placed on the top center of the chamber to anchor chambers in place, report any discrepancies to site design engineer and a recommendation to use “Flexstorm Catch It’ inserts for all inlets.

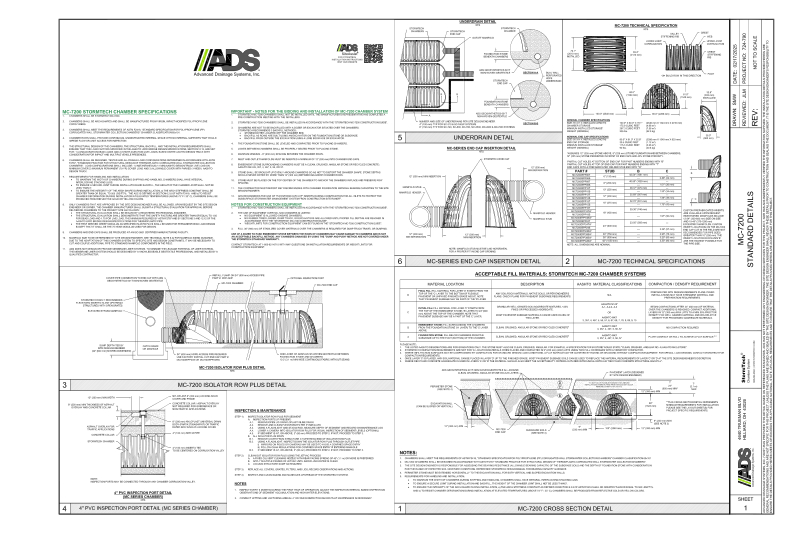

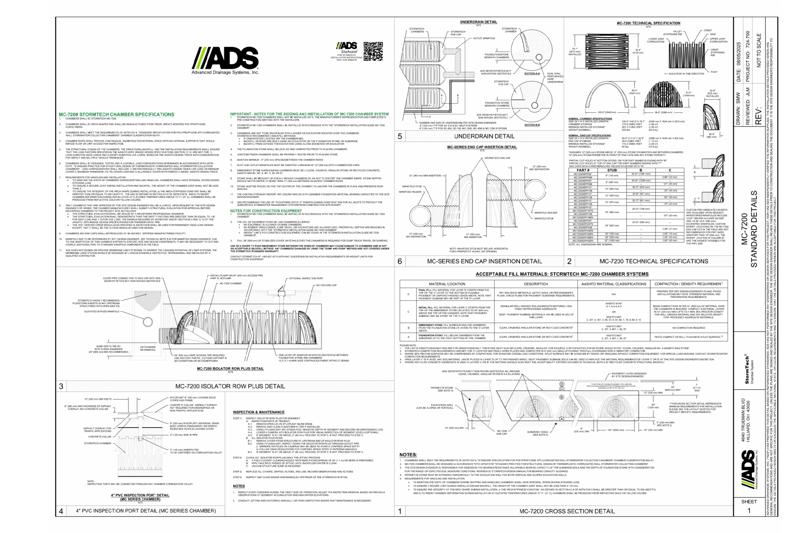

Details included in this document are the underdrain detail, MC-7200 Isolator Row Plus cross section, PVC inspection port detail, MC-Series end cap insertion detail, Inserta-TEE side inlet and the MC-7200 technical specifications.

An acceptable fill material chart and a MC-7200 cross section of chamber installation with material layers is shown.
