36" - 60" Fabricated Water Tight Bell End Single Manifolds (HDPE Dual Wall Fabricated Manifolds Fittings)
Filename:
36" - 60" Fabricated Water Tight Bell End Single Manifolds (HDPE Dual Wall Fabricated Manifolds Fittings).pdf

This document is the 36" - 60" Fabricated Water Tight Bell End Single Manifolds (HDPE Dual Wall Fabricated Manifolds Fittings). A diagram with table provided.

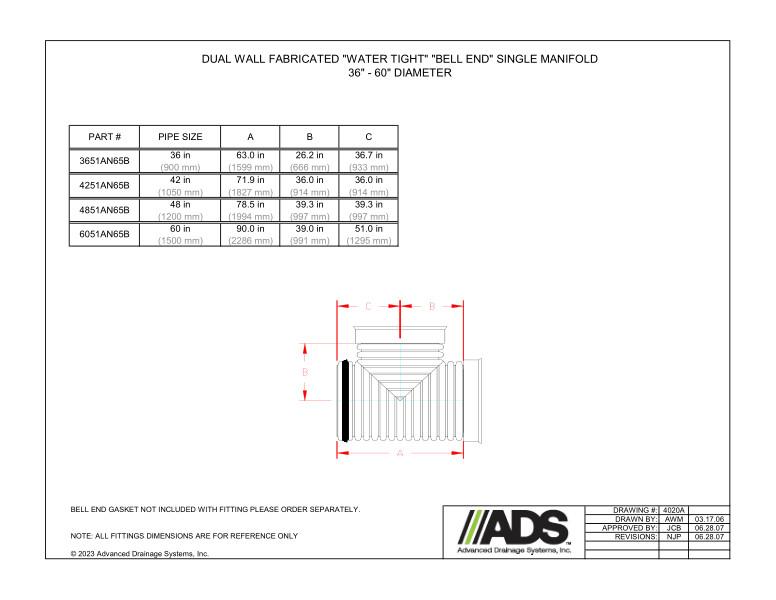

The dual wall Fabricated “Water Tight” “Bell End” Single Manifold 36" - 60" diameter is shown in a diagram that shows A/B/C dimensions.
A table with the information for part number, pipe size and A/B/C sizes is provided.
Bell end gasket not included with fittings, order separately. All fittings dimensions are for reference only.
