36"-60" Fabricated Mitered 45 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings)

Filename:
36"-60" Fabricated Mitered 45 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings).pdf

36"-60" Fabricated Mitered 45 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings)

This document is the 36”-60” Fabricated Mitered 45 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings). Plain end & watertight diagrams and table provided.

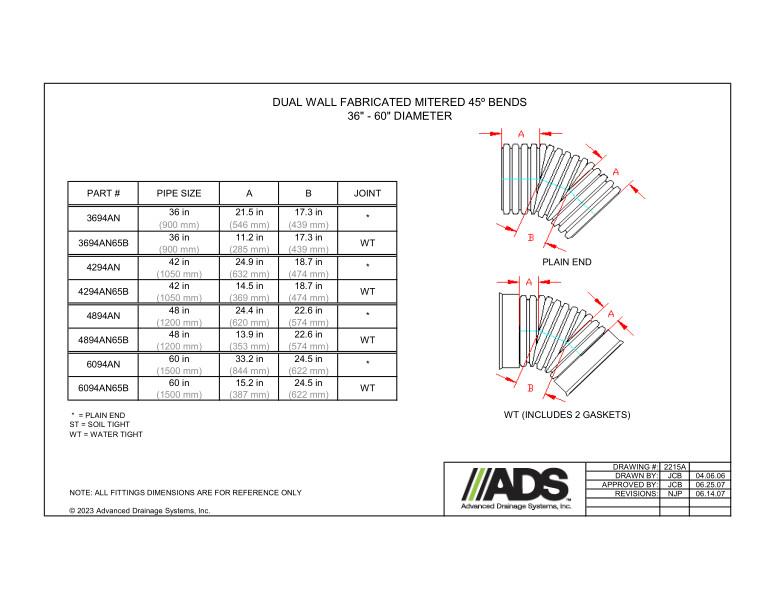

The illustrations of the plain end Bend shows the angle and A/B dimensions. The WT (includes 2 gaskets) Bend shows the angle and A/B dimensions.

A table with part number, pipe size and A/B/Joint dimensions is provided.

All fittings dimensions are for reference only.
