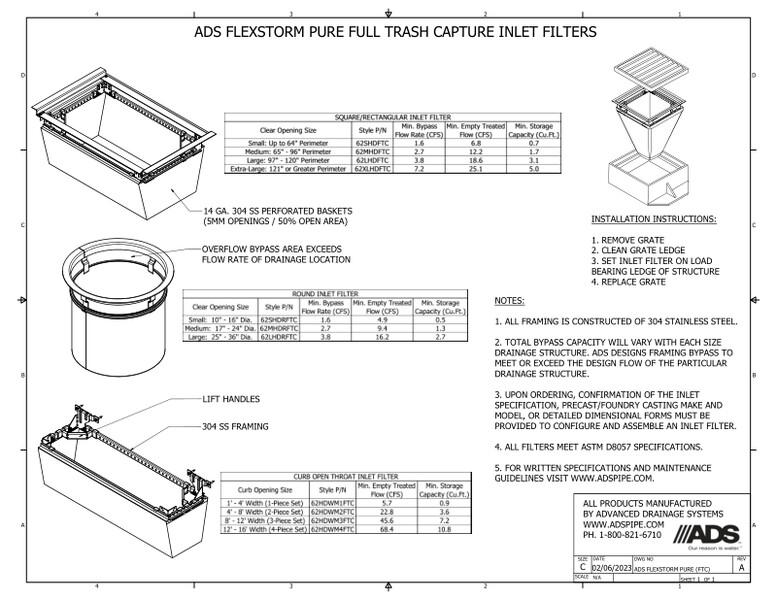

This document is the ADS FlexStorm FTC Submittal Drawing. The ADS FlexStorm Pure Full Trash Capture Inlet Filters with tables, figure and notes detailed.

The square/rectangular inlet filter diagram is shown with 14 gallon 304 SS perforated baskets. The table below shows the values for clear opening size, style P/N, minimum bypass flow rate, minimum empty treated flow and minimum storage capacity.

The round inlet filter diagram is shown with overflow bypass area exceeds flow rate of drainage location. The table below shows the values for clear opening size, style P/N, minimum bypass flow rate, minimum empty treated flow and minimum storage capacity.

The curb open throat filter diagram is shown with lift handles and 304 SS framing. The table below shows the values for clear opening size, style P/N, minimum empty treated flow and minimum storage capacity.

A figure shows the entire unit with installation instructions to remove grate, clean grate ledge, set inlet filter on load bearing ledge of structure and replace grate.

Notes state that all framing is constructed of 304 stainless steel. Total bypass capacity will vary with each size drainage structure. Confirmation of the inlet specification, precast/foundry casting make and model or detailed dimensional forms must be proved to configure and assemble inlet filter. All filters meet ASTM D8057 specifications.
